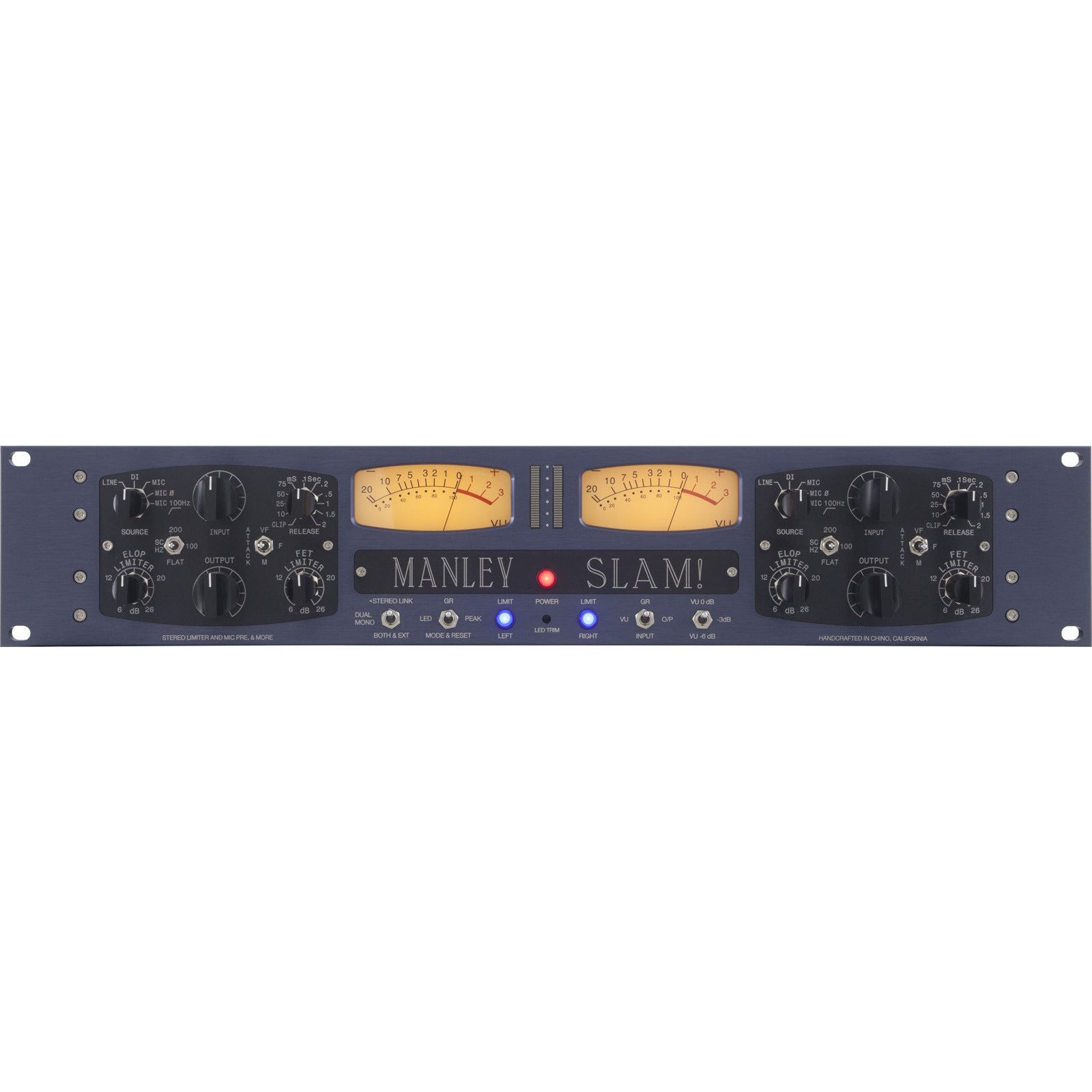

Manley Slam

SLAM! stands for "Stereo Limiter And Micpre" and it pretty much describes what it will do to most VU meters. We had to put a switch on this limiter to drop its internal VU meters down 3 & 6dB to keep the poor little needles from bending– it'll get LOUD fast (hence the exclamation mark). And on top of being an amazing pair of (actually four) Limiters, and Class A tube mic preamps, it also has masters degrees in DI, AtoD and DtoA, VU and PPM but that was too much for an acronym.

When it comes to classic gear, especially classic limiters, we can all agree numbers like LA2s, 1176s, 2264s, and others come to mind. What if all those sounds were to be found in one stereo tube unit. Interested? We combined our favorite Electro-Optical circuit (ELOP^®) with a damn fast FET based brick-wall limiter reminiscent of some cool classics. And we added a sidechain filter that can remove low frequencies that makes it more useful for a variety of tasks, while retaining that easy, "it just works" quality that has made it a favorite for vocals everywhere. The FET-based limiter has different desirable characteristics that both optimise the signal for digital recording, due to the brick-wall capability, and let you dial in how clean or crunchy, or punchy, and how loud and proud you want it. Manley is excited to announce the SLAM!

GET IN: The SLAM! starts with tube Mic Preamps on both channels with switchable phantom power and phase reverse. We’ve got plenty of gain for you in this new tube circuit, up to 60dB with 20dB more in the limiter– plenty for soft singers using low output ribbon mics. The input attenuator is right up front, like a variable pad so your loud rock ‘n’ rollers won’t cause a problem either. Track direct with the Direct Instrument input or bring your line level inputs into the SLAM! for processing. Come on in!

Got some Digital to deal with? No problem. There is a slot in the back for our optional 24 Bit/96KHz Analog to Digital converter and 24 Bit/192KHz Digital to Analog converter card. This allows you to record directly to your computer or workstation and provides a convenient way to use a digital insert to jump into the analog realm and back. An AES digital input receives your stereo digital signal to convert to analog for processing by the SLAM! when the DAC input is selected. Or just take advantage of this killer DAC and use the DAC Output for monitoring, listening, or to go out to some other analog processors or tape machines.

Get it LOUD... two different and distinct limiters per channel:

The ELOP^® LIMITER: Our beloved Electro-Optical Levelling Amplifier circuit, the ELOP^®, still the favorite for vocal tracking, shows up here with its new switchable side-chain high pass filter making it much more useful for mixes and other tracks as well. One of the most appreciated aspects of our original ELOP^® is the simplicity of a two knob limiter, which is optimum for demanding pro recording pressures. You can still grab two knobs and have complete control of level and dynamics and be ready to hit that record button. Intuitive controls and a straight ahead signal path through quality components simply works.

The FET LIMITER: Here’s a new fast FET based "brick wall" limiter that spans the range of clean predictable limiting to the grunge and gravel that other FET based limiters are desired for. The FET RELEASE control allows you to dial up a variety of colors. There is even a "CLIP" setting that provides as round a shape as has ever been available. (Read more below about the CLIP settings.) We aimed at "sound" first, then experimented with circuits until we heard what we wanted discovering fresh approaches that provide a very wide range of useful dynamic control. For example, you can set up for a fast brick wall limiter with slower releases for minimum artifacts, or go with the faster releases to get some crunch and then get extreme loudness. The Attack control is unusual too providing the sonic control common with its historic brothers but very unusually retaining the zero overshoot “none-shall-pass” brick wall that defines a real limiter. And it’s punchy! As the saying goes, “Louder is better.” The SLAM! optimizes levels to analog to digital converters with ballz, warmth and loudness verging on silly or just clean and safe.

What is especially nifty is the ability to use the ELOP^® and FET limiters together at the same time dialing in whatever amounts of each effect you like. Every limiter has its own character or sound and here we have combined two powerful world-class tools that can be uniquely blended and mixed to taste and purpose. Even the metering is appropriate for each limiter so you can easily see how each is contributing.

Metering on the SLAM! is exceptional. The two full size real VU meters show you the raw input levels, the final output levels, and the ELOP^® Limiter gain reduction in the traditionally preferred format for visually displaying apparent loudness. VU’s are cool. Noticing how mastering engineers often need a switchable pad on their VU's because the "optimised" levels tend to pin the needles in the red, the SLAM! VU’s also have a 0, -3dB, -6dB switch to help with this situation. There are also very fast and super accurate multi-color LED ladder peak meters that display the input and output levels and the FET gain reduction, and some combinations. They will do Peak, Peak Hold timed, and Peak Hold until reset, and also allow you to manually set where the individual bars change colors to match your other gear. And with maximum clean I/O levels of +30 dBu, it is a lot more likely you will use these meters to see what’s clipping downstream. It probably won’t be the Manley tube line drivers inside!

 The back panel should keep everybody happy. All the usual XLR’s for transformer balanced I/O and 1/4" phone jacks for direct unbalanced I/O. There are four TRS jacks for inserting external EQ into the sidechains and another connector for linking multiple units for surround. It’s all here. The optional 24 bit converters are a brand new design that insures the lowest possible conversion jitter even with questionable sources. It will lock to an external clock via the digital input and is 44.1, 48, 88.2, 96, and 192KHz capable. The DAC output is always available. There is even a twisted way (called "Expert Mode") to patch the SLAM! so that you can have the MIC PRE/ELOP feeding an EQ, (or some other thing), returning back to the SLAM! to drive the FET LIMITER, meters, and the A to D converter. Sometimes we think of just about everything...

• Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for lo-noise and stable bias

• Output Tubes: 2 x 6414W NOS USA dual triodes

• I/O: MANLEY transformer coupled Balanced Inputs and Outputs

• Micpre: Selectable 48V phantom power and PHASE REVERSE

• Gain: 60dB max Micpre, 43dB max DI, 20dB max Limiter Gain

• Input Impedance: 2000Ω Micpre, 1MegΩ DI

• FET Limiter: Attack: approx. 100μS; Release: 10mS to 2Sec; Ratio:better than 20:1

• ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec;Ratio: 10:1

• DAC: AES 24Bit 192KHz upsampling from 44.1, 48, 88.2, & 96KHz

• A to D: 24Bit 96KHz (for now)

• Frequency Response: 5Hz to 60KHz

• Maximum Output: +32dBm, +30dBm (into 1KΩ load)

• THD+N: <.05% @ 1KHz

• Dynamic Range: 115dB typical

• Output Impedance: 200Ω

• Power Consumption Slam! Analog:
  0.480 Amps (480 milliamps = 480mA) @ 120V = 57.6 Watts
  0.240 Amps (240 milliamps = 240mA) @ 240V = 57.6 Watts

• Power Consumption Slam! Digital:
  0.688 Amps (688 milliamps = 688mA) @ 120V = 82.56 Watts
  0.344 Amps (344 milliamps = 344mA) @ 240V = 82.56 Watts

• Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation
for original destination country's mains voltage.

• Operating Mains Voltage changeable with power transformer re-wiring via switch and fuse value change.

• Mains Voltage Frequency: 50~ 60Hz

• Size: 19” X 12” X 3.5” (occupies 2u)

• Shipping Weight: 25 lbs.
