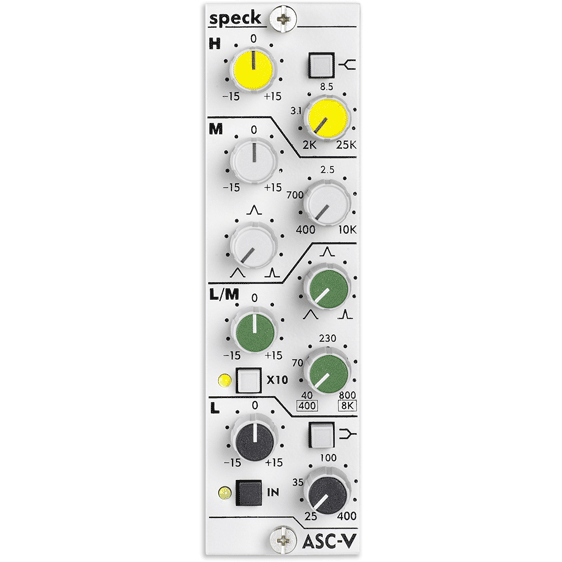

Speck Electronics Model ASC-V 500 Series Eq


The ASC-V is a single channel 4-band parametric equalizer in a 5.25" vertical module format compatible with the API Audio series of rack frames. In addition to the standard API-ish rack connector, the rear of the ASC-V module has 1/4" TRS input and output jacks and a power input connector. With these connectors and an optional power module, you can ignore the edge connector and use the ASC-V as a stand alone EQ. Speck even offers a mounting base that will hold a single EQ or a pair of ASC-V's.

• L Band - a low band that sweeps the low frequencies from 25Hz - 400Hz. This band offers a Peak/Shelf select switch.
• L/M Band - a switchable low and mid band. This fully parametric section can be switched between a low frequency band that sweeps from 40Hz - 800Hz, or a mid frequency band that sweeps 400Hz - 8kHz. This band has a variable bandwidth adjustment.
• M Band - a fully parametric mid band with a frequency sweep range from 400Hz to 10kHz.
• H Band - a high band that adjusts the high frequency from 2kHz all the way up to 25kHz. This band also offers a Peak/Shelf select switch.

SPECIFICATIONS

• Frequency Response: 2Hz-135kHz (+0/-3dB)
• THD+n: .0014% @ +24 dBu
• Residual Noise: -102dBu (22Hz-22kHz)
• Maximum Input/Output Level: +28dBu /+28dBu
• Input Impedance: 30K Ohms (Balanced), 15K Ohms (Unbalanced)
• Output Impedance: 600 Ohms (Transformer-balanced), 60 Ohms (Active-balanced)
• Dimensions: HxWxD=5.25" x 1.59" x 5.9" (133mm x 38mm x 150mm)
• Rack Power Requirements: +/- 16VDC @ 35ma
• External AC Power Suply: 120VAC or 230VAC
