Grace Design m303 Active DI with Lundahl Transformer Output ... NEW
Regular price £245.83m303 DI

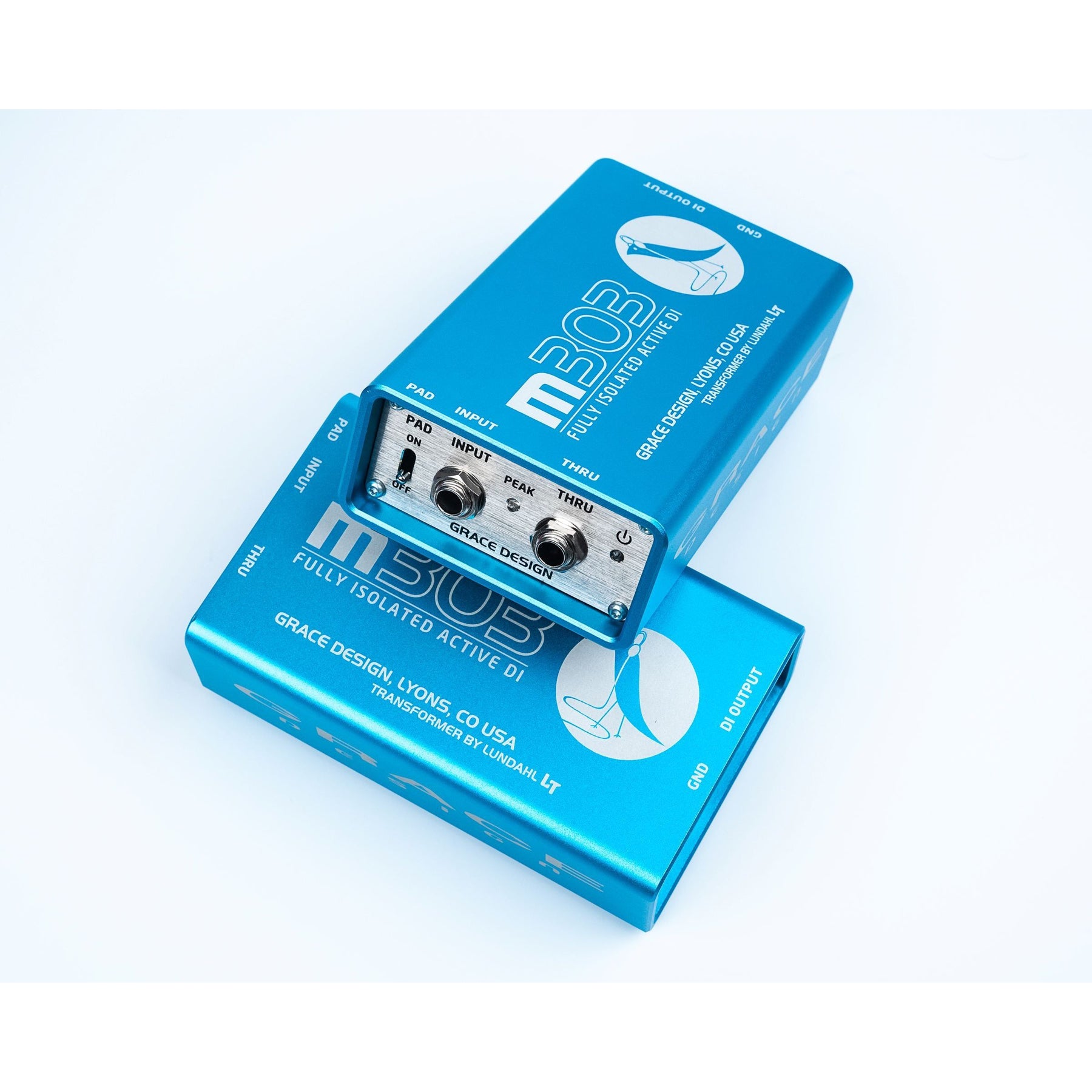

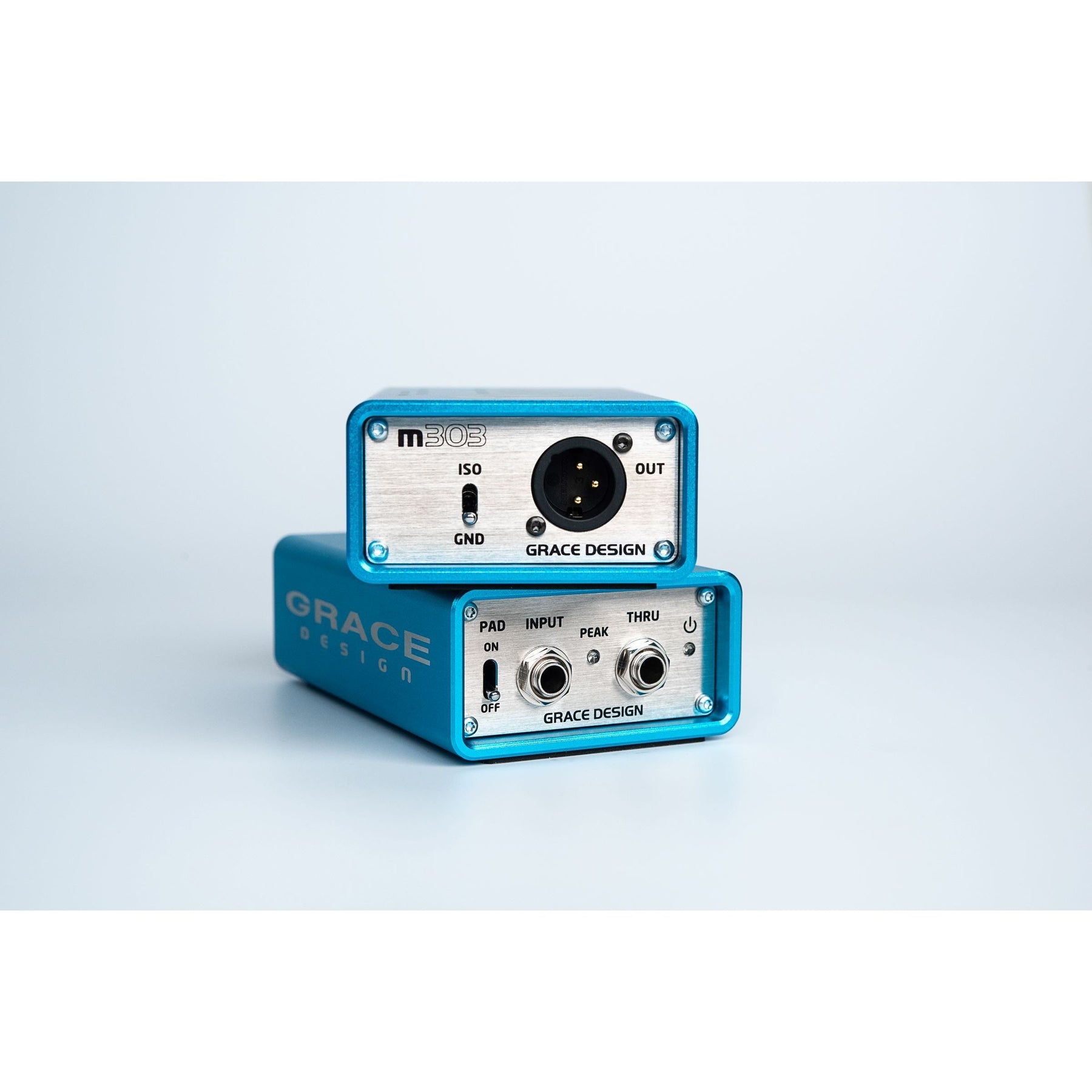

The all new Grace Design m303 is an active, truly-isolated direct box, delivering next-generation audio performance for
all live stage and studio applications. Our advanced power supply design provides incredible headroom and dynamic
range. A custom-wound Lundahl transformer outputs amazing low-end clarity and high frequency detail. All of this
performance is packaged in a beautiful and rugged ¼” extruded aluminum chassis. Don’t let the elegant exterior fool
you, this thing is built.
Features
Phantom powered active DI with full galvanic isolation.
Custom wound Lundahl transformer, magnetically shielded with a high nickel core
Ultra-low distortion (below -100dB at 1kHz, below -80dB at 50Hz)
Ultra-low noise (-118dBu, A weighting)
Ultra-wide bandwidth 20-80kHz
Wide dynamic range (124dB)
Excellent low frequency headroom THD+N @50Hz <-80dB (0.007%)
1M Ohm input impedance works with any line or pickup signal source
Peak indicator LED - 3dB before clipping
Power indicator LED
Efficient design only draws 4mA of phantom power current
Through signal connector
Fully ESD and RFI protected
Input pad (13dB) for high level signals
High-quality gold contact toggle switches
Very rugged 1/4" wall extruded aluminum chassis, recessed connectors
m303 advantages over many other DI products
Signature Grace Design transparent, musical audio performance
Active design with true galvanic isolation
World class Lundahl transformer
Incredibly low distortion and noise with wide dynamic range
Deep, rock-solid bass response
1M ohm input impedance
Durable, designed for years of reliability
Backed by a 5 year warranty
Made in the USA
