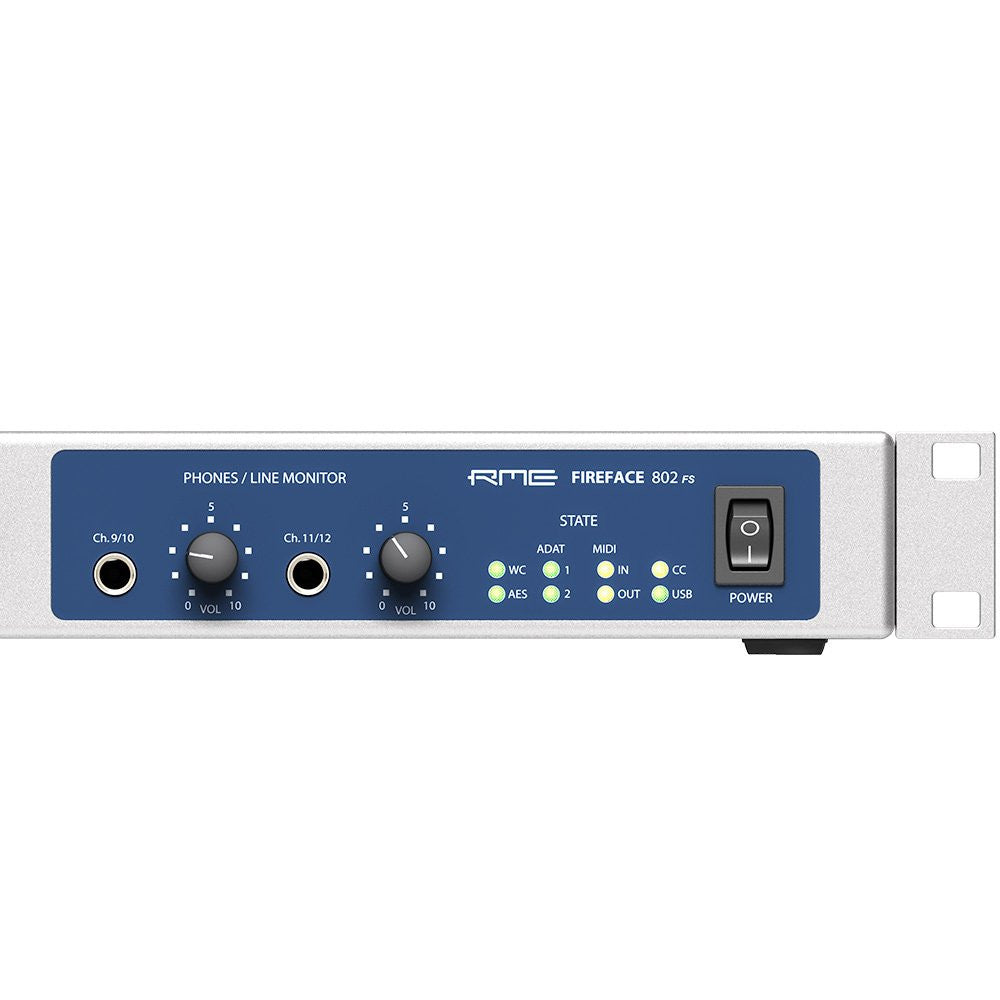

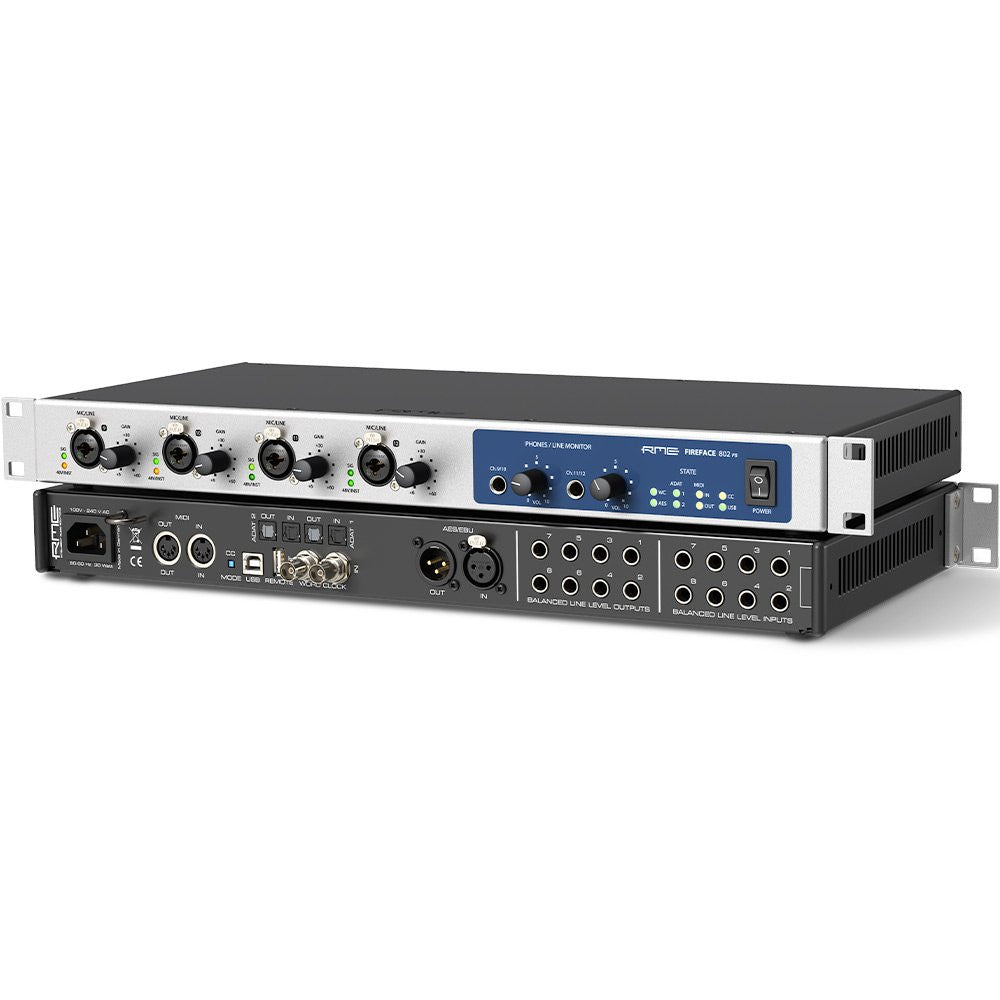

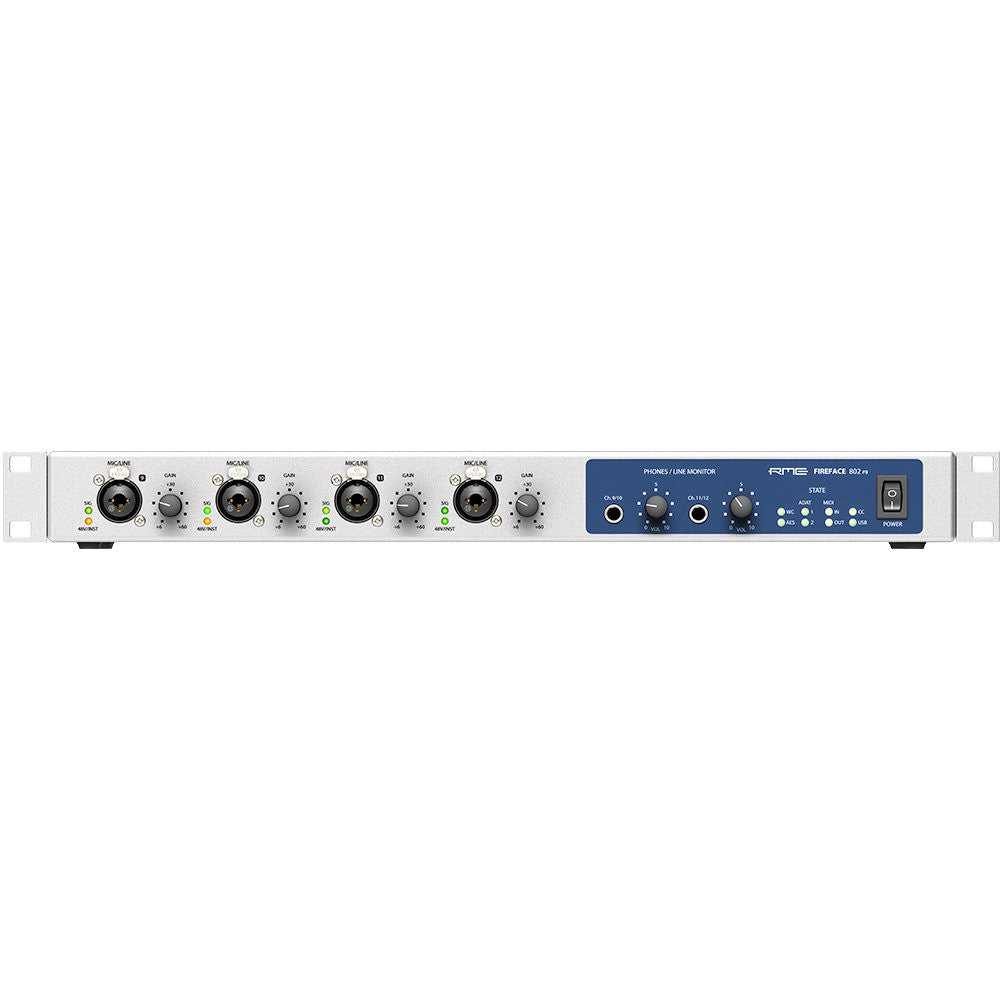

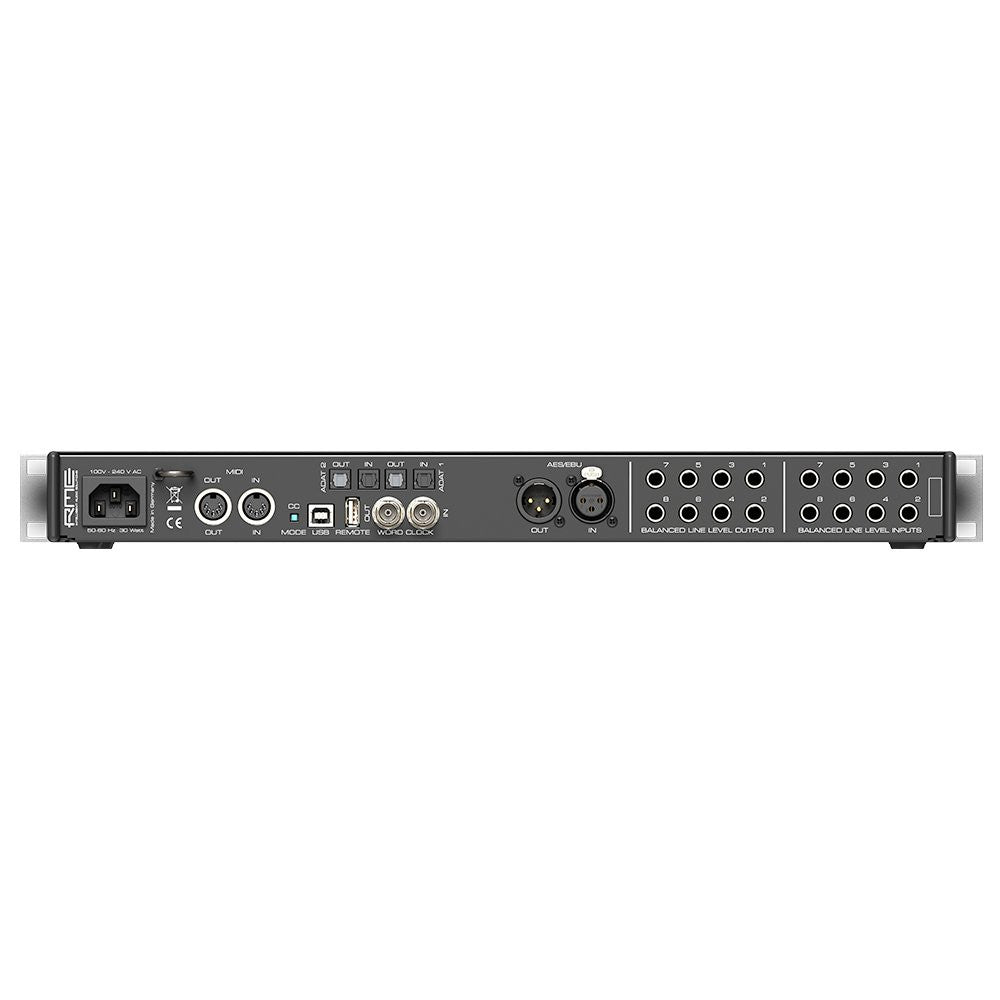

RME Fireface 802 FS
RME Fireface 802 FS
RME Fireface 802 FS
RME Fireface 802 FS

RME Fireface 802 FS

Regular price £1,515.83
/

60-Channel High-end 192 kHz
USB Audio Interface


  • 30 Input / 30 Output channels
  • 12 x Analogue I/O
  • 4 x Mic/Instrument Preamp
  • 1 x AES/EBU I/O
  • 2 x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O)
  • 1 x Word Clock I/O
  • 1 x MIDI I/O
  • SteadyClock FS
  • TotalMix FX
  • 5 Year Warranty
  • Optional: ARC USB (Advanced Remote Control)

The Fireface 802 FS is a highly integrated pro audio solution for live and studio use, designed for users who require high-end audio recording, rock-solid stability and ultra-low latency operation, as well as an unrivalled professional feature set.

Alongside 60 channels (30 inputs / 30 outputs) of analogue and digital I/O, the Fireface 802 FS benefits from newly developed analogue and digital circuitry with improved performance, as well as a host of professional features.

Like all RME audio interfaces, the Fireface 802 FS benefits from TotalMix FX, RME's digital high-end mixer and signal router. Driven by powerful DSP with integrated EQ, Dynamics and Reverb/Echo effects at up to 192 kHz, plus a built-in monitoring controller, TotalMix FX offers powerful, flexible control of all audio channels.

The full-blown feature set also includes optional Class Compliant mode and operation with TotalMix FX for iPad, RME's app to fully control the 802 FS from the iPad, without any computer. The easy-to-use app includes metering for all 60 channels plus effects bus, different setup screens, and complete control of all features.

AD, Line In 1-8, rear

  • Input: 6.3 mm TRS, electronically balanced
  • Signal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBA
  • Signal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz
  • Frequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHz
  • Filter: Short Delay Sharp, 5 / 5 / 6 samples delay
  • THD @ -1 dBFS: < -120 dB, < 0.0001 %
  • THD+N @ -1 dBFS: < -110 dB, < 0.00032 %
  • Channel separation: > 110 dB  Maximum input level: +19 dBu
  • Input: 6.3 mm TRS jack, electronically balanced
  • Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced
  • Input sensitivity switchable between Lo Gain and +4 dBu
  • Input level for 0 dBFS @ Lo Gain: +19 dBu
  • Input level for 0 dBFS @ +4 dBu: +13 dBu
  • Variable digital gain: 0 to +12 dB
  • Minimum level for 0 dBFS: +1 dBu, -1.2 dBV

Microphone In 9-12, front

As AD, but:

  • Input: 6.3 mm TRS, electronically balanced
  • Signal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBA
  • Signal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz
  • Frequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHz
  • Filter: Short Delay Sharp, 5 / 5 / 6 samples delay
  • THD @ -1 dBFS: < -120 dB, < 0.0001 %
  • THD+N @ -1 dBFS: < -110 dB, < 0.00032 %
  • Channel separation: > 110 dB  Maximum input level: +19 dBu
  • Input: 6.3 mm TRS jack, electronically balanced
  • Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced
  • Input sensitivity switchable between Lo Gain and +4 dBu
  • Input level for 0 dBFS @ Lo Gain: +19 dBu
  • Input level for 0 dBFS @ +4 dBu: +13 dBu
  • Variable digital gain: 0 to +12 dB
  • Minimum level for 0 dBFS: +1 dBu, -1.2 dBV

Instrument In 9-12, front


As AD, but:

    • Input: XLR, electronically balanced
    • Input impedance: 3.4 kOhm
    • Signal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBA
    • Gain range: 54 dB
    • Maximum input level, Gain +6 dB: +10 dBu
    • Maximum input level, Gain +60 dB: -44 dBu
    • CLIP LED: 0 dBFS
    • SIG LED: -42 dBFS

    DA, Line Out 1-8, rear

      • Output: 6.3 mm TRS jack, servo-balanced
      • Signal to Noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA
      • Signal to Noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBA
      • Signal to Noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBA
      • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
      • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHz
      • Frequency response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHz
      • THD+N: < -110 dB, < 0.00032 %
      • Channel separation: > 110 dB
      • Output level switchable Hi Gain, +4 dBu, -10 dBV
      • Output level at 0 dBFS @ Hi Gain: +19 dBu
      • Output level at 0 dBFS @ +4 dBu: +13 dBu
      • Output level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)
      • Output impedance: 75 Ohm
        • DA - Stereo Monitor Output Phones (9-12)

          As DA, but:

          • Output: 2 x 6.3 mm TRS stereo jack, unbalanced
          • Maximum output level at 0 dBFS: +17 dBu
          • Max power per channel @ 32 Ohm load, 0.02% THD: 200 mW (2.5 Vrms, +10 dBu)
          • Signal to Noise ratio (SNR): 116 dB (AES17), 118 dBA
          • Output impedance: 2 Ohm




          AES/EBU

          Input:
          • 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
          • High-sensitivity input stage (< 0.3 Vpp)
          • SPDIF compatible (IEC 60958)
          • Accepts Consumer and Professional format
          • Lock range: 27 kHz – 200 kHz
          • Jitter suppression: > 50 dB (> 1 Hz)

          Output:

          • 1x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
          • Output level Professional 4.2 Vpp, Consumer 2.4 Vpp
          • Format Professional according to AES3-1992 Amendment 4
          • Format Consumer (SPDIF) according to IEC 60958
          • Single Wire mode, sample rate 28 kHz up to 200 kHz

          ADAT Optical

            Input:

            • 2 x TOSLINK, format according to Alesis specification
            • Standard: 2 x 8 channels 24 bit, up to 48 kHz
            • Double Speed (S/MUX): 2 x 4 channels 24 bit 96 kHz
            • Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHz
            • Bitclock PLL ensures perfect synchronisation even in varispeed operation
            • Lock range: 31.5 kHz – 50 kHz
            • Jitter suppression: > 50 dB (> 1 Hz)

            Output:

            • 2 x TOSLINK, format according to Alesis specification
            • Standard: 2 x 8 channels 24 bit, up to 48 kHz
            • Double Speed (S/MUX): 2 x 4 channels 24 bit 96 kHz
            • Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHz


            SPDIF optical (via ADAT2)

            Input:

            • 1 x optical, according to IEC 60958
            • Accepts Consumer and Professional format
            • Lock range: 27 kHz – 200 kHz
            • Jitter suppression: > 50 dB (> 1 Hz)

            Output:

            • Format Consumer (SPDIF) according to IEC 60958
            • Sample rate 28 kHz up to 200 kHz


            Word Clock

            • BNC, switchable termination





        + View more
